Tripod Turnstile Single Leg

Our turnstiles are designed to be suitable for both indoor and outdoor environments. They are utilized for secure and convenient access in corporate headquarters, plazas, factories, schools, sports facilities, and residential projects.

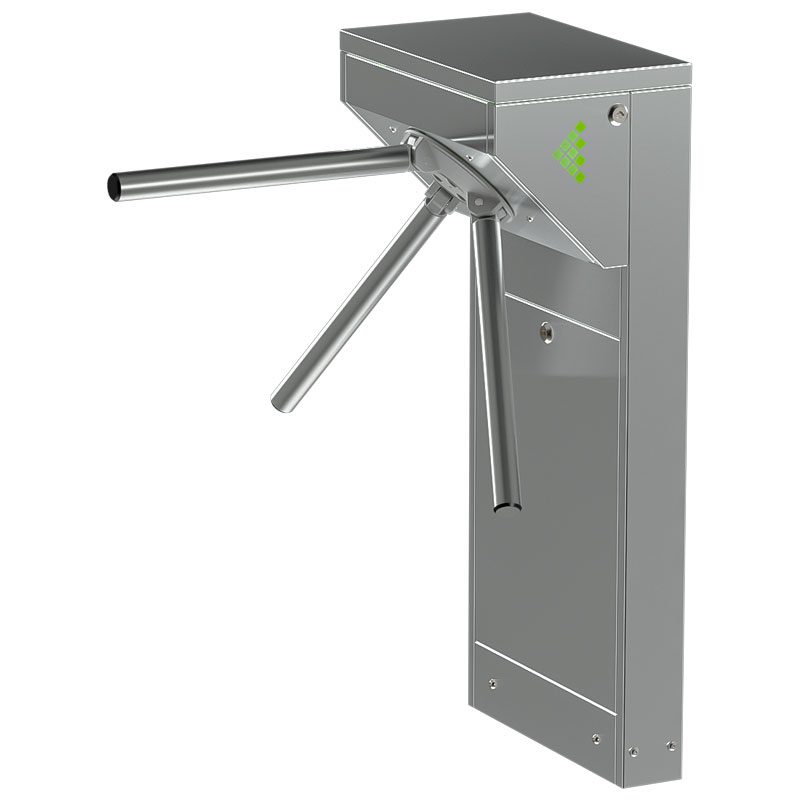

Tripod Turnstile
CODE: SCT120
Product Features: Single
Electromechanical
Bidirectional
Indoor / Outdoor
Deterrent
30 Passages / Min
tek_ayakli_tripod_2
OPERATION

Adjustable manual switching in both directions

body

1.2 mm thick 304 quality stainless steel

0 MM
THICKNESS
0 QUALİTY
Stainless steel
optional

430 quality stainless steel or electrostatic powder coating with different color options.

0 QUALITY
STAINLESS STEEL
Handles
Ø 0 MM

Ø38 mm diameter aluminium or different colour options with electrostatic powder coating

IP CLASS
IP 0
Op. IP56
Operating Temperature

Between (-20°C) and (+68°C) Op: -50°C with heater

Functions

Switching time adjustable, adjustable switching directions, audible alarm, led alarm

Emergency

In case of all kinds of disasters and emergencies, the handles run idle. (Optional: Drop arm)

Power Consumption

24V DC standby 12W max 60W 7W max 14W. Power supply system (SMPS) with the feature of filtering fluctuations likely to occur in electrical lines

Transition Range

470mm – 520mm

Safety Level

Deterrent

Indicators

Bidirectional double colour led panel

Accessories

Heater, battery unit, dry contact or systems that can be controlled by any voltage between TTL CMOS 5-48V.

Control System

Compatible with all kinds of Access control units and token systems. Opt. Functions can be controlled with RS232-485 or LAN (network).
