Sectec

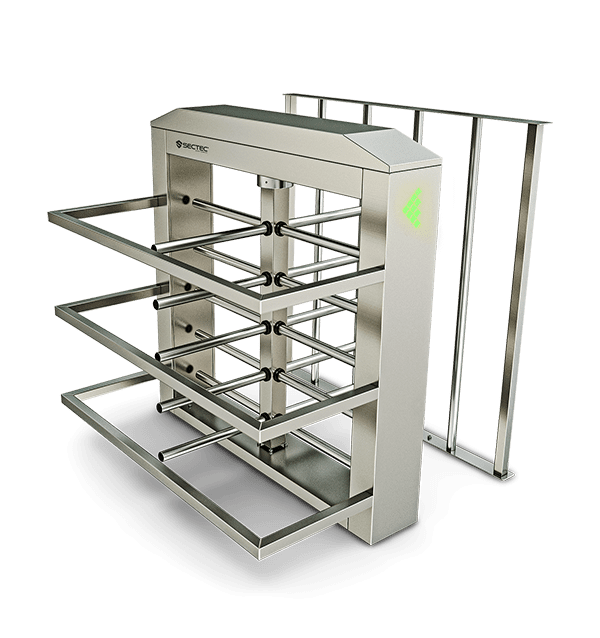

Half Height Turnstile Single

They are products produced to facilitate controlled access or prevent unauthorized entries in areas with mass personnel and visitor entrances, such as trade centers, public buildings, metro and train lines, schools, and banks. These products adhere to industrial standards, providing a long lifespan.

Half Height Turnstile
CODE: SCT300
Product Features: Single
Electromechanical
Bidirectional
Indoor / Outdoor
Deterrent
20 Passages / Min
yarim_boy
OPERATION

Adjustable manual switching in both directions

body

1.2 mm thick stainless steel. Optional: Electrostatic powder coating with different color options.

0 MM
THICKNESS
Power Supply

110/220V – 50/60 Hz AC (%10 +-)

Handles
Ø 0 MM

Electrostatic powder coating with Ø38 mm diameter stainless steel or different colour options

IP CLASS
IP 0
Op. IP56
Operating Temperature

Between (-20°C) and (+68°C) Op: with -50°C heater

Functions

Switching time adjustable, adjustable switching directions, memory mode, audible alarm

Emergency

In case of all kinds of disasters and emergencies, the handles run idle.

Power Consumption

24V DC standby 12W max 60W 7W max 14W. Power supply system (SMPS) with the feature of filtering fluctuations likely to occur in electrical lines

Transition Range

510mm

Safety Level

High Security

Indicators

Bidirectional double colour led panel

Accessories

Heater, battery unit, led spot lighting, dry contact or systems that can be controlled by any voltage between TTL CMOS 5-48V.

Control System

Compatible with all kinds of Access control units and token systems. Opt. Functions can be controlled with RS232-485 or LAN (network).
