Double-foot Slim Tripod Turnstile

Body Material

1.2mm AISI 304 satin Stainless Steel (Optional 316 quality Stainless Steel) or Electrostatic Powder Coating on with DKP Sheet color options.

Center and Arms

Aluminum injection center reinforced with black oven paint, hardened aluminum arms (Optional Stainless Steel)

Motion and Control

Dual optical sensors for stable locking system. Hydraulic brake and slide bearing system for adjustable and controlled soft operation.

Control Card

Internal RS 232 communication port. Audible and visual warning system in case of unauthorized intervention on the handles. Display screen showing the number of entries and exits in A and B directions. Programmable button set used for various function settings (Time Off duration, etc.) DIP Switch used for general settings (direction LED color change and controlled and free switching modes) Dry contact inputs (NO) reserved for A and B directions Emergency input reserved for emergencies (NC). Extra 12V DC output (Max. 1A) for external readers that can be connected to the turnstile

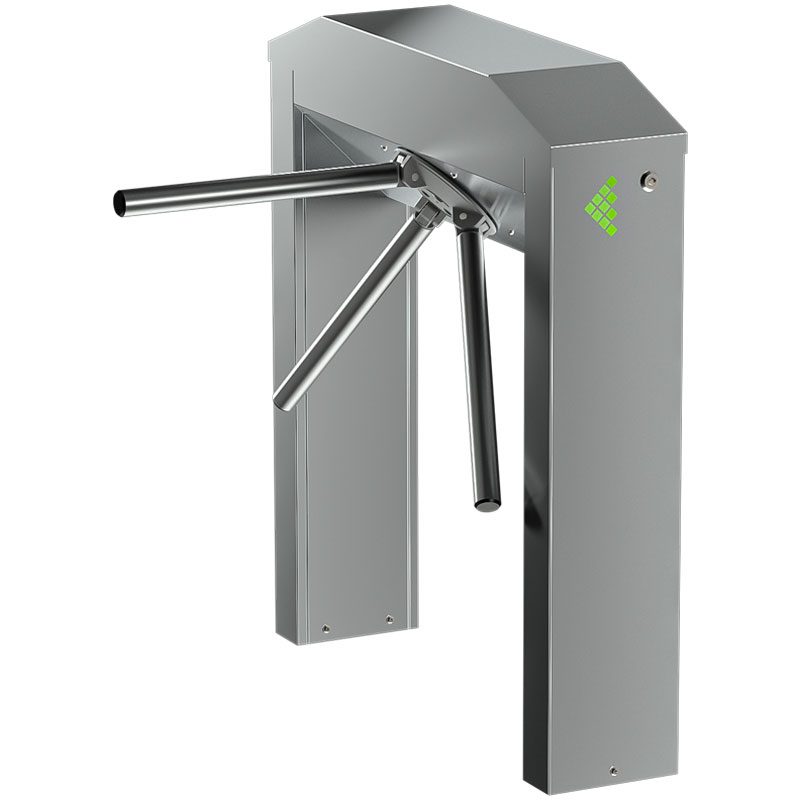

SCT110-A

Energy and Operating Voltage
110V – 240V AC 50/60 Hz 24V DC

Operating Temperature
-15°C / +60°C

IP Class
IP54

Passing Speed
25 people/minute

Optional: Outdoor cover, button unit, remote control, stabilizer bottom plate

Turnstile systems are devices used for access control and security purposes.

It is frequently preferred at building entrances and factory entrances to keep people’s identity information and prevent them from entering unauthorized places. Generally, 4 different types are used and preferred. These are tripod turnstile, glass turnstile, disabled (vip) turnstile and height turnstile.

We offer the turnstile models that best suit our customers’ needs and requests at the most affordable turnstile prices.

Double-foot Slim Tripod Turnstile

Turnstile systems are devices used for access control and security purposes.
